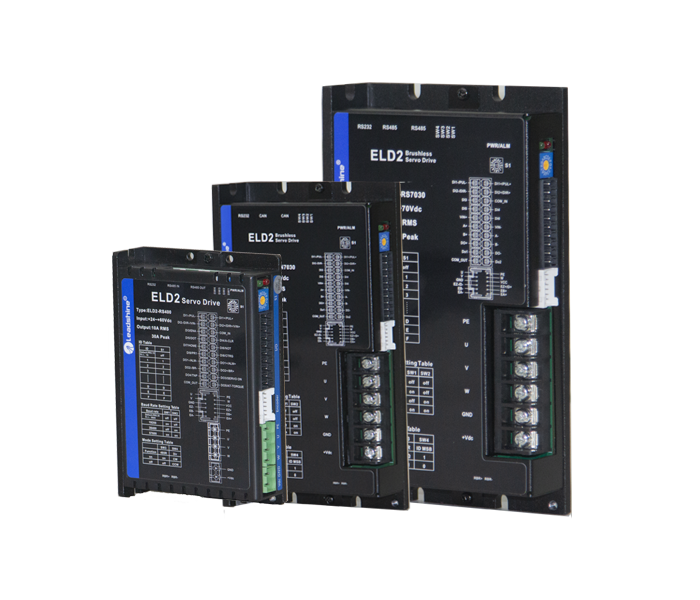

Servo Drives (DC Input)

Highlights

Advanced control algorithm
Step & direction, CW/CCW, Modbus/RS485, CANopen
24-70 VDC voltage input
Powering brushless servo motors to 1.5 kW.
High precision, smooth & quiet motor movement
Cost effective

Introduction

High performance DC brushless servo drives powering a wide range of servo motors up to 1500 W. These servo drives can operate up to 70VDC input, output up to 90A peak current. Those servo drives offer control type options of step & direction, CW/CCW, Modbus/RS485, and CANopen.

Available Products

Model	Series	Control Type	Input Voltage (VDC)	Continuous Output Current (A)	Peak Output Current (A)	Max Rated Power (W)	Communication
ELD2-RS7005	ELD2	step+direction analog input modbus/RS485	24-70	5	21.2	200	RS485
ELD2-RS7010	ELD2	step+direction analog input modbus/RS485	24-70	10	35	400	RS485
ELD2-RS7015B	ELD2	step+direction analog input modbus/RS485	24-70	15	45	600	RS485
ELD2-RS7020B	ELD2	step+direction analog input modbus/RS485	24-70	20	80	750	RS485
ELD2-RS7030B	ELD2	step+direction analog input modbus/RS485	24-70	30	90	1200	RS485
ELD2-CAN7005B	ELD2	CANopen	24-70	5	21.2	100	CAN
ELD2-CAN7010B	ELD2	CANopen	24-70	10	42.5	400	CAN
ELD2-CAN7015B	ELD2	CANopen	24-70	15	45	600	CAN
ELD2-CAN7020B	ELD2	CANopen	24-70	20	80	750	CAN
ELD2-CAN7030B	ELD2	CANopen	24-70	30	90	1200	CAN
