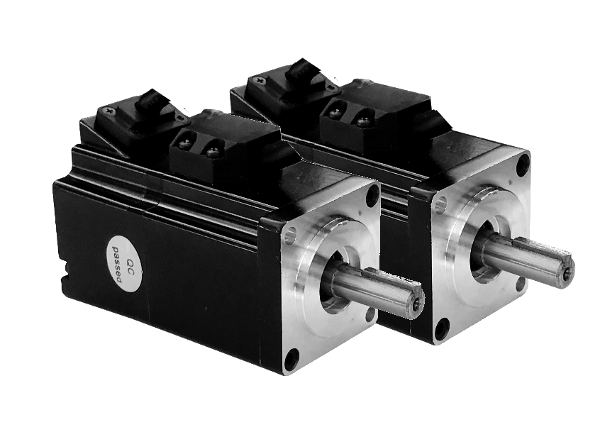

Low Voltage AC Servo Motors

Highlights

Reliable industrial quality
High torque density
Encoder options of 1,000-line, 2,500-line, 5,000-line, and 17-bit
Frame size 40mm, 60 mm, or 80 mm
Rated power from 50 W to 750 W
Peak speed up to 5,000 RPM

Introduction

Leadshine designs and manufactures high quality low voltage input AC servo motors with rated power from 50 to 750 watts. Those servo motors are available in the frame sizes of 40 mm, 60 mm, and 80 mm. Encoder resolution options include 1,000-line, 2,500-line, 5,000-line, and 17-bit. For high volume OEM customers, Leadshine also offers customization to meet special requirements such as customized shafts, brakes, etc.

Available Series

ACM Series

The ACM series low-medium voltage AC servo motors offer high performance with models ranging from 100W to 400W. Standard models come with a standard 2500-line or 1000-line differential encoder with index slits (A, B, Z), and Hall Sensors (U, V, W). When driven by Leadshine ACS series servo drives, the ACM series motors meet application requirements from as low as 1 rpm to as high as 3500 rpm.

Detail...

ELDM Series (NEW)

The ELDM series low-medium voltage AC servo motors offer high performance with models ranging from 50W to 750W. Standard models come with a standard 2500-line or 1000-line differential encoder with index slits (A, B, Z), and Hall Sensors (U, V, W). When driven by Leadshine ELD2 series servo drives, the ELDM series motors meet application requirements from as low as 1 rpm to as high as 4000 rpm.

Detail...

Available Products

Model	Series	Encoder Resolution	Frame Size	Rated Power (W)	Rated Voltage (VDC)	Torque (N*m)		Speed (RPM)		Motor Length (mm)	Notes
Model	Series	Encoder Resolution	Frame Size	Rated Power (W)	Rated Voltage (VDC)	Continuous	Peak	Rated	Peak	Motor Length (mm)	Notes
ACM601V36-01	ACM	1,000-line	60mm	100	36	0.318	0.95	3,000	4,000	96	-
ACM602V36-01	ACM	1,000-line	60mm	200	36	0.64	1.91	3,000	4,000	123.5	-
ACM604V60-01	ACM	1,000-line	60mm	400	60	1.27	3.82	3,000	4,000	131.5	-
ACM601V36-T	ACM	2,500-line	60mm	100	36	0.318	0.95	3,000	5,000	89.5	-
ACM602V36-T	ACM	2,500-line	60mm	200	36	0.64	1.91	3,000	5,000	103.5	-
ACM604V48-T	ACM	2,500-line	60mm	400	48	1.27	3.82	3,000	5,000	131.5	-
ACM604V60-T	ACM	2,500-line	60mm	400	60	1.27	3.82	3,000	5,000	131.5	-
ELDM4005V24HL-B5	ELDM	2500 Lines	40mm	50	24	0.16	0.48	3000	4000	71	-
ELDM4010V24GL-B5	ELDM	2500 Lines	40mm	100	24	0.32	0.96	3000	4000	115.1	-
ELDM4010V24HL-B5	ELDM	2500 Lines	40mm	100	24	0.32	0.96	3000	4000	85	-
ELDM4010V48HL-B5	ELDM	2500 Lines	40mm	100	24	0.32	0.96	3000	5000	85	-
ELDM6020V24HL-A5-HD	ELDM	1000 Lines	60mm	200	24	0.64	1.92	3000	5000	92	-
ELDM6020V24GL-A5-HD	ELDM	1000 Lines	60mm	200	24	0.64	1.92	3000	4000	131	brake
ELDM6020V36HL-A5	ELDM	1000 Lines	60mm	200	36	0.64	1.92	3000	5000	92	-
ELDM6020V36GL-A5	ELDM	1000 Lines	60mm	200	36	0.64	1.92	3000	5000	121.8	brake
ELDM6040V48GL-A5-HD	ELDM	1000 Lines	60mm	400	48	1.27	3.81	3000	4000	146	brake
ELDM6040V48HL-A5-HD	ELDM	1000 Lines	60mm	400	48	1.27	3.81	3000	4000	114	-
ELDM6040V60HL-A5	ELDM	1000 Lines	60mm	400	60	1.27	3.81	3000	4000	116	-
ELDM6040V60GL-A5	ELDM	1000 Lines	60mm	400	60	1.27	3.81	3000	4000	155	brake
ELDM6040V24HL-A5-HD(V2.0)	ELDM	1000 Lines	60mm	400	24	1.27	3.84	3000	4000	117	-
ELDM6040V24GL-A5-HD(V2.0)	ELDM	1000 Lines	60mm	400	24	1.27	3.84	3000	4000	149	brake
ELDM6060V48GL-A5-HD(V2.0)	ELDM	1000 Lines	60mm	600	48	1.91	5.7	3000	4000	171	brake
ELDM6060V48HL-A5-HD(V2.0)	ELDM	1000 Lines	60mm	600	48	1.91	5.7	3000	4000	171	-
ELDM8075V48HM-A4-HD	ELDM	1000 Lines	80mm	750	48	2.4	7.2	3000	4000	142	-
ELDM8075V48GM-A4-HD	ELDM	1000 Lines	80mm	750	48	2.4	7.2	3000	4000	177	brake
ELDM8075V60HM-A4-HD	ELDM	1000 Lines	80mm	750	60	2.4	7.2	3000	4000	142	-
ELDM8075V60GM-A4-HD	ELDM	1000 Lines	80mm	750	60	2.4	7.2	3000	4000	177	brake
ELDM80100V48HM-A4-HD(V2.0)	ELDM	1000 Lines	80mm	1000	48	3.2	9.6	3000	4000	165	-
ELDM80100V48GM-A4-HD(V2.0)	ELDM	1000 Lines	80mm	1000	48	3.2	9.6	3000	4000	201	brake

Display Legacy Models
