General Stepper Drives

(Step & Direction or CW/CCW)
General Stepper Drives

Highlights

  • Step & direction or CW / CCW control
  • Wide choices
  • Driving almost all NEMA 8-51 stepper motors
  • Excellent performance
  • High reliability
  • Simple setup and easy to use
Introduction
Since 1997, Leadshine has been offering step & direction and CW & CCW control type general purpose stepper drives which are capable of powering any frame size from NEMA 8, 11, 14, 16, 17, 23, 24, 34, 42, and 51. Today Leadshine is the largest stepper drive manufacturers in the world with millions of millions of stepper motors controlled in the field. Those Leadshine stepper drives have been adopted in the world in thousands of applications by tens of thousands of OEM clients.
Available Series

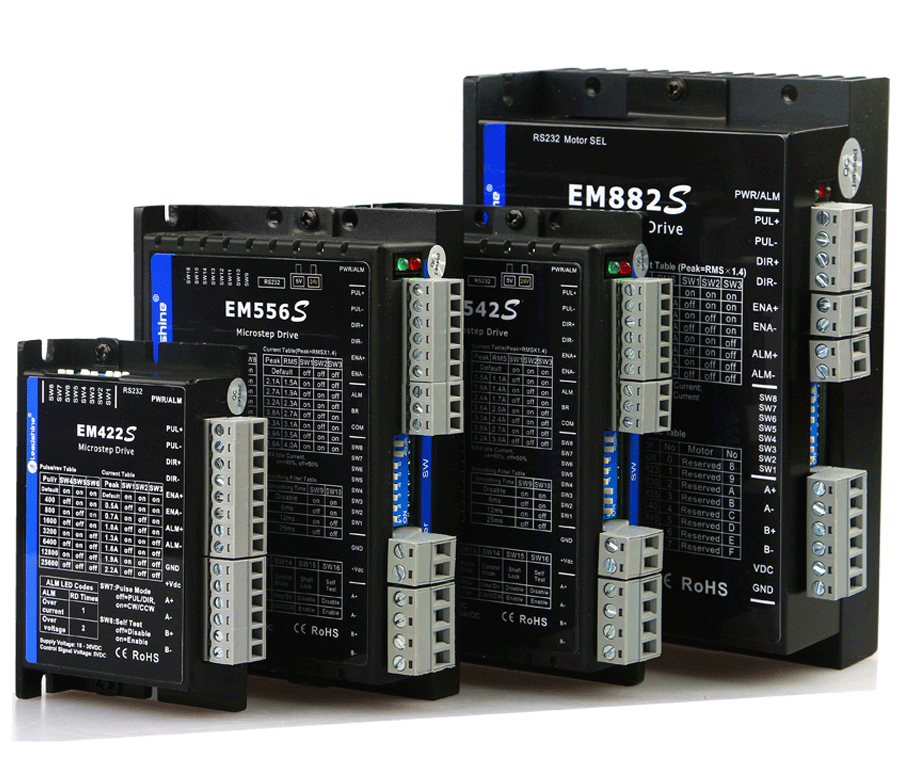

EM-SLeadshine's newest digital stepper drives upgraded from its popular DM series stepper drives with the performance improvement and addition of convenient features (fault output, control command smoothing, better interference resistance
EM

Stepper drives featured with sensorless stall detection, anti-resonance, user password protection; input voltage from 20 to 80 VDC and current of 0.3 to 8.2 Amp; able to drive NEMA 14 to NEMA 42 stepper motors, alarm signal output

DM

Stepper drives featured with super-low motor noise, anti resonance; input voltage from 18 to 80VDC / 80 to 230VAC and current of 0.3 to 8.2 Amp, matched with NEMA 14 to NEMA 42 stepper motors

MXHigh performance 3 and 4 axis stepper drives capable of driving NEMA 17, 23, 24, and 34 stepper motors. Easy and quick setup with built-in digital inputs and outputs. Supply voltage of 20-60 VDC; max output current to 6A per axis.
Available Products
Model Series
Control Type(s) Phase Supply Voltage

Output Current

(A)

Step Revolution Suitable Stepper Motors
EM402EMStep & Direction
CW & CCW
220 - 40 VDC0.3 - 2.2200 - 51,200NEMA 14,16,17
EM503EMStep & Direction
CW & CCW
224 - 50 VDC0.5 - 4.2200 - 51,200NEMA 14,16,17,23
EM705EMStep & Direction
CW & CCW
220 - 70 VDC0.5 - 7.0200 - 51,200NEMA 23,34
EM806EMStep & Direction
CW & CCW
224 - 80 VDC0.5 - 8.2200 - 51,200NEMA 23,34
DM422DMStep & Direction
CW & CCW
218 - 40 VDC0.3 - 2.2200 - 51,200NEMA 14,16,17,23
DM556DMStep & Direction
CW & CCW
218 - 50 VDC0.5 - 5.6200 - 51,200NEMA 17.23
DM856DMStep & Direction
CW & CCW
220 - 80 VDC0.5 - 5.6200 - 51,200NEMA 23,34
DM870DMStep & Direction
CW & CCW
218 - 80 VDC0.5 - 7.0200 - 51,200NEMA 23,34
DM805-AIDMStep & Direction
0-5VDC
220 - 80 VDC0.5 - 7.0200 - 51,200NEMA 23,34
DM1182DMStep & Direction
CW & CCW
280 - 150 VAC0.5 - 8.2200 - 51,200NEMA 34,42
DM2282DMStep & Direction
CW & CCW
290 - 230 VAC0.5 - 8.2200 - 51,200NEMA 34,42
3DM580DMStep & Direction
CW & CCW
320-50 VDC0.5-8.0200 - 51,200NEMA 17, 23
3DM683DMStep & Direction
CW & CCW
320 - 60 VDC0.5 - 8.3200 - 51,2003-phase NEMA 23,34
3DM883DMStep & Direction
CW & CCW
320-80 VDC2.1 - 8.3200 - 51,200NEMA 23, 34
3DM2283DMStep & Direction
CW & CCW
390-230 VAC2.2-8.3200 - 51,200NEMA 34, 42
MX3660MXStep & Direction220-60 VDC1.41-6.0200 - 12,800NEMA 17, 23, 24, 34
MX4660MXStep & Direction220-60 VDC1.41-6.0200 - 12,800NEMA 17, 23, 24, 34
SDM660MXStep & Direction220-60 VDC1.41-6.0200 - 12,800NEMA 17, 23, 24, 34
M542MStep & Direction
CW & CCW
220 - 50 VDC1.0 - 4.2200 - 51,200NEMA 16,17,23
MA860HMStep & Direction
CW & CCW
218 - 80 VAC / 36 - 110 VDC2.4 - 7.2200 - 51,200NEMA 23,34,42
M880AMStep & Direction
CW & CCW
224 - 80 VDC1.8 - 7.8200 - 51,200NEMA 23,34
DM542EDMStep & Direction220 - 50 VDC1.0 - 4.2400 - 25,600NEMA 16,17,23
DMA860EDMStep & Direction
CW & CCW
218 - 80 VAC / 36 - 110 VDC2.4 – 7.2400 - 51,200NEMA 23, 34, 42
