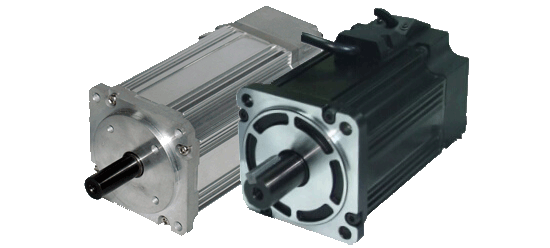

ELDM Series - Brushless Servo Motors


Highlights

  • Brushless construction
  • Reliable industrial quality
  • High torque density
  • Resolution of the integrated encoders optional
  • Metric 60 mm frame sizes
  • Rated power from 50 W to 750 W
  • Standard cabling options for direct connection to the ELD5 series drives
The ELDM series low-medium voltage AC servo motors offer high performance with models ranging from 50W to 750W. Standard  models come  with  a  standard  2500-line  or  1000-line  differential  encoder with index slits  (A, B, Z), and Hall Sensors (U, V, W). When driven by Leadshine ELD5 series servo drives, the ELDM series motors meet application requirements from as low as 1 rpm to as high as 4000 rpm.

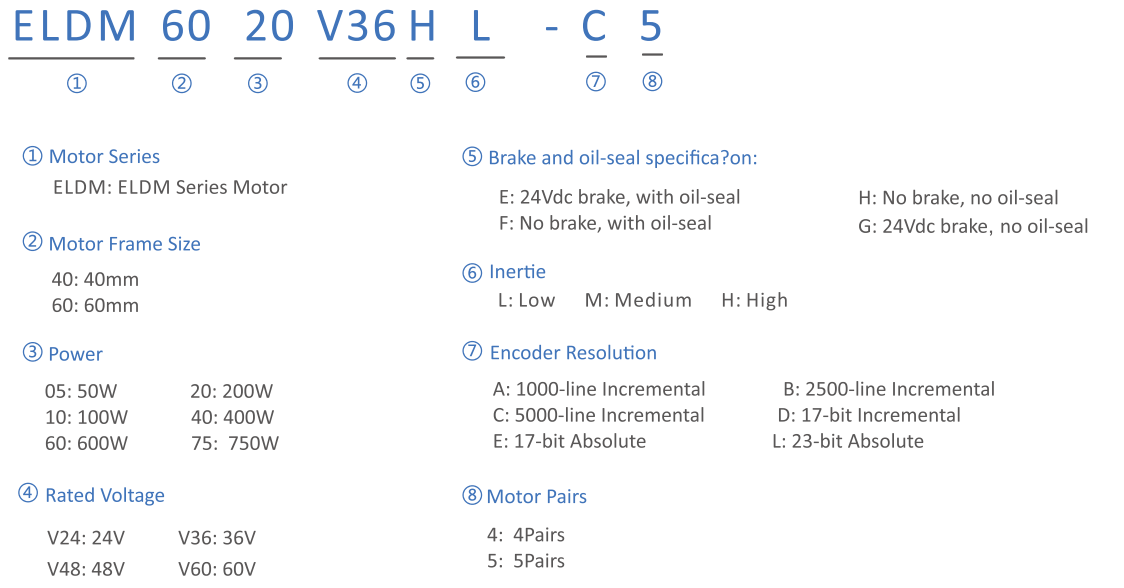

Available Products in ELDM Series
Model Series Encoder
Resolution
Frame
Size
Rated
Power
(W)
Rated
Voltage
(VDC)
Torque
(N*m)
Speed
(RPM)
Motor
Length
(mm)
Notes
Continuous Peak Rated Peak
ELDM6020V24HL-A5ELDM1000 Lines60mm200240.641.923000400092-
ELDM6020V24GL-A5ELDM1000 Lines60mm200240.641.9230004000131brake
ELDM6020V36HL-A5ELDM1000 Lines60mm200360.641.923000500092-
ELDM6020V36GL-A5ELDM1000 Lines60mm200360.641.9230005000121.8brake
ELDM6040V48HL-A5ELDM1000 Lines60mm400481.273.8130004000116-
ELDM6040V48GL-A5ELDM1000 Lines60mm400481.273.8130004000155brake
ELDM6040V60HL-A5ELDM1000 Lines60mm400601.273.8130004000116-
ELDM6040V60GL-A5ELDM1000 Lines60mm400601.273.8130004000155brake
ELDM6040V24HL-A5ELDM1000 Lines60mm400241.273.8130004000116-
ELDM6040V24GL-A5ELDM1000 Lines60mm400241.273.8130004000146.5brake
ELDM6060V48HL-A5ELDM1000 Lines60mm600481.95.730004000136-
ELDM6060V60HL-A5ELDM1000 Lines60mm600601.95.730004000136-
ELDM8075V48HM-A4ELDM1000 Lines80mm750482.47.230004000142-
ELDM8075V48GM-A4ELDM1000 Lines80mm750482.47.230004000177brake
ELDM8075V60HM-A4ELDM1000 Lines80mm750602.47.230004000142-
ELDM8075V60GM-A4ELDM1000 Lines80mm750602.47.230004000177brake
ELDM80100V48HM-A4ELDM1000 Lines80mm1000483.29.630004000165-
ELDM6020V36HL-C5ELDM5000 Lines60mm200360.641.923000400092-
ELDM6020V36GL-C5ELDM5000 Lines60mm200360.641.9230004000131brake
ELDM6020V36HM-C5ELDM5000 Lines60mm200360.641.923000400092-
ELDM6040V48HL-C5ELDM5000 Lines60mm400481.273.8130004000116-
ELDM6040V48GL-C5ELDM5000 Lines60mm400481.273.8130004000155brake
ELDM6040V60HL-C5ELDM5000 Lines60mm400601.273.8130004000116-
ELDM6040V60GL-C5ELDM5000 Lines60mm400601.273.8130004000155brake
ELDM6060V48HL-C5ELDM5000 Lines60mm600481.95.730004000136-
ELDM6060V60HL-C5ELDM5000 Lines60mm600601.95.730004000136-
ELDM8075V48HM-C4ELDM5000 Lines80mm750482.47.230004000142-
ELDM8075V48GM-C4ELDM5000 Lines80mm750482.47.230004000177brake
ELDM8075V60HM-C4ELDM5000 Lines80mm750602.47.230004000142-
ELDM8075V60GM-C4ELDM5000 Lines80mm750602.47.230004000177brake
ELDM4005V24HL-E5ELDM17 Bit40mm50240.160.483000400071-
ELDM4005V24GL-E5ELDM17 Bit40mm50240.160.483000400099brake
ELDM4010V24HL-E5ELDM17 Bit40mm100240.320.963000400086.8-
ELDM4010V24GL-E5ELDM17 Bit40mm100240.320.9630004000115brake
ELDM6020V36HL-E5ELDM17 Bit60mm200360.641.923000400092-
ELDM6020V36GL-E5ELDM17 Bit60mm200360.641.9230004000131brake
ELDM6020V36HM-E5ELDM17 Bit60mm200360.641.923000400092-
ELDM6040V48HL-E5ELDM17 Bit60mm400481.273.8130004000116-
ELDM6040V48GL-E5ELDM17 Bit60mm400481.273.8130004000155brake
ELDM6040V60HL-E5ELDM17 Bit60mm400601.273.8130004000116-
ELDM6040V60GL-E5ELDM17 Bit60mm400601.273.8130004000155brake
ELDM6060V48HL-E5ELDM17 Bit60mm600481.95.730004000136-
ELDM6060V60HL-E5ELDM17 Bit60mm600601.95.730004000136-
ELDM8075V48HM-E4ELDM17 Bit80mm750482.47.230004000142-
ELDM8075V48GM-E4ELDM17 Bit80mm750482.47.230004000177brake
ELDM8075V60HM-E4ELDM17 Bit80mm750602.47.230004000142-
ELDM8075V60GM-E4ELDM17 Bit80mm750602.47.230004000177brake
ELDM6020V36HL-L5ELDM23 Bit60mm200360.641.923000400092-
ELDM6020V36GL-L5ELDM23 Bit60mm200360.641.9230004000131brake
ELDM6020V36HM-L5ELDM23 Bit60mm200360.641.923000400092-
ELDM6040V48HL-L5ELDM23 Bit60mm400481.273.8130004000131-
ELDM6040V48GL-L5ELDM23 Bit60mm400481.273.8130004000131brake
ELDM6040V60HL-L5ELDM23 Bit60mm400601.273.8130004000116-
ELDM6040V60GL-L5ELDM23 Bit60mm400601.273.8130004000155brake
