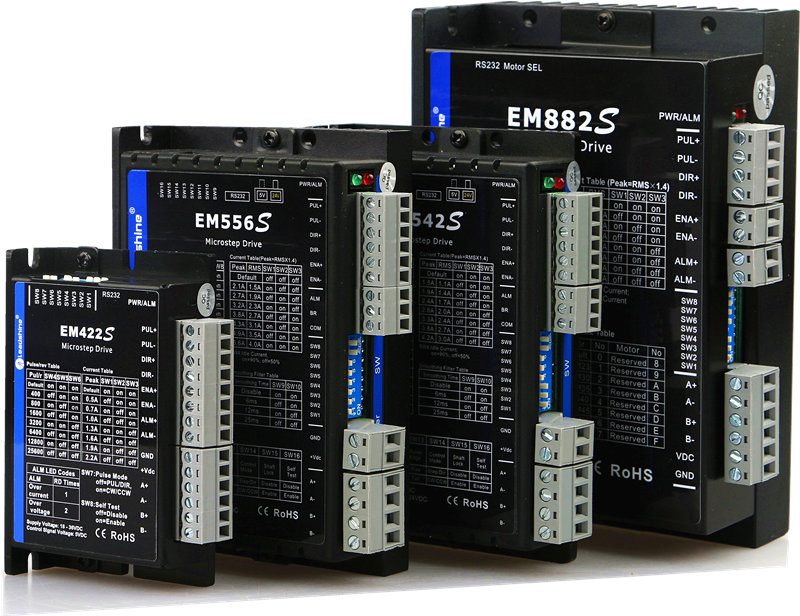

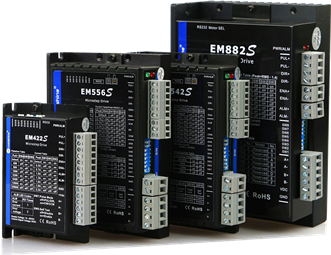

EM-S Series - Advanced Digital Stepper Drives powering NEMA 8,11,14,17,23,24,34,42 motors


Highlights

  • Step & Direction or CW/CCW control types
  • Excellent torque performance (10-25% over Leadshine DM series)
  • Convenient control command smoothing
  • Fault output
  • Powering stepper motors of NEMA 8,11,14,23,24,34,42
  • Simple setup
  • CE certified and RoHS compliant
  • Installation compatible with Leadshine DM, EM, M, and ND series
Leadshine EM-S Series consists of stepper drives upgraded from its popular DM series stepper drives which have been implemented in by thousands of industrial customers in the past 10+ years, and now control over 3,000,000 axis for a wide-range of industrial applications in the field around the world.  Besides retaining the DM series features of high precision, high reliability, low noise, low motor heating, and low motor vibration, Leadshine has also applied improvements to the EM-S stepper drives such as better motor output torque (10-25% depending motor rotating speeds), convenient command smoothing, better interference resistance, addition of fault output, ...

Available Products in EM-S Series
Model Series
Control Type(s) Phase Supply Voltage

Output Current

(A)

Step Revolution Suitable Stepper Motors
EM415SEM-SStep & Direction / CW & CCW218 - 36 VDC0.3 - 1.5200 - 25,600NEMA 8, 11, 14, 17
EM422SEM-SStep & Direction / CW & CCW218 - 36 VDC0.3 - 2.2 200 - 25,600NEMA 8, 11, 14, 17
EM542SEM-SStep & Direction / CW & CCW220 - 50 VDC0.5 - 4.2200 - 51,200NEMA 17, 23, 24
EM556SEM-SStep & Direction / CW & CCW220 - 50 VDC0.5 - 5.6200 - 51,200NEMA 17, 23, 24
EM870SEM-SStep & Direction / CW & CCW220 - 80 VDC0.5 -7.0A200 - 51,200NEMA 23, 24, 34
EM882SEM-SStep & Direction / CW & CCW220 - 80 VDC0.5 - 8.2200 - 51,200NEMA 23, 24, 34
