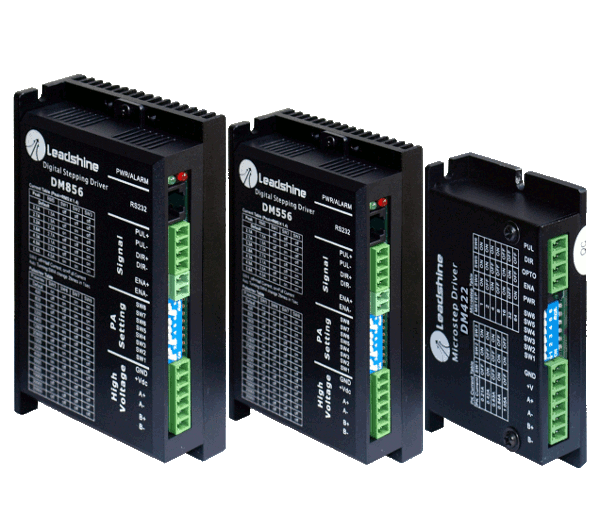

DM Series - DSP Based Digital Stepper Drives


Highlights

  • Step & direction or CW/CCW control
  • Advanced DSP-based current control algorithm

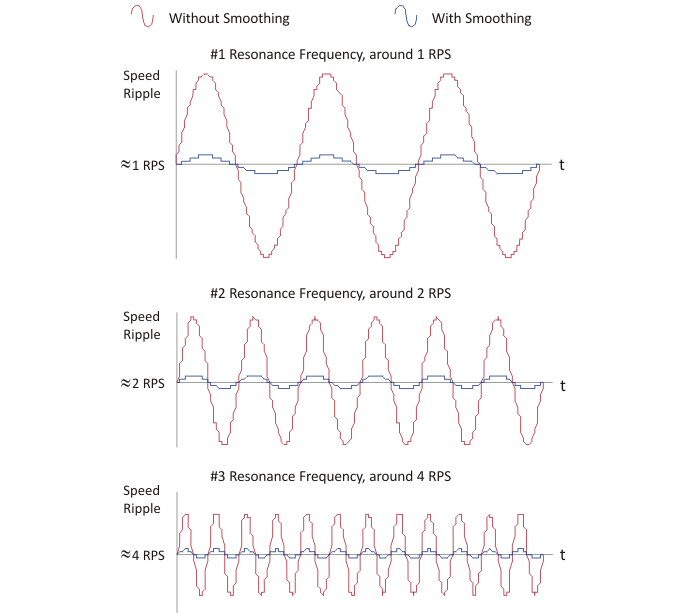

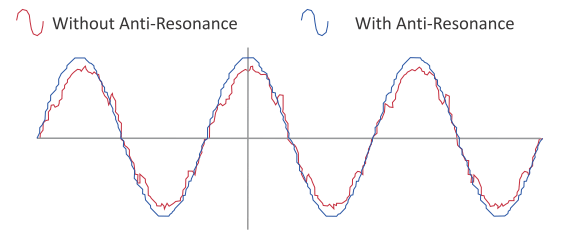

  • Low-middle speed anti-resonance

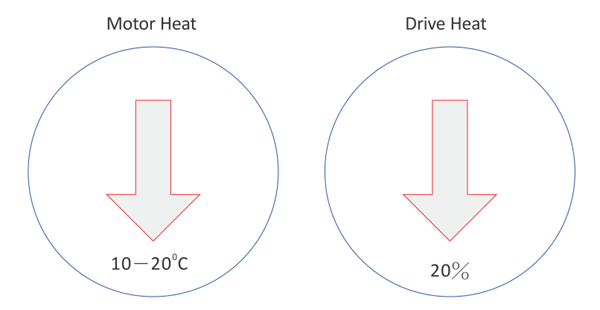

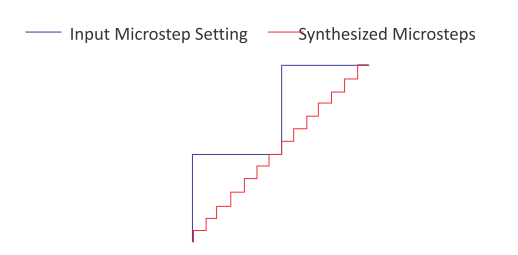

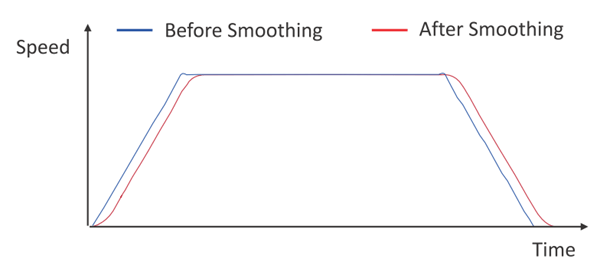

  • Extra low noise; extra low motor heating; smooth motor movement

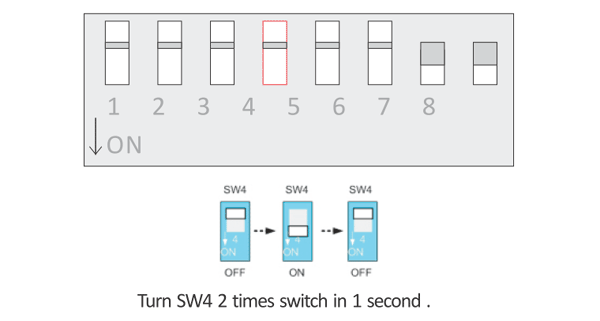

  • Easy setup via DIP switches for microstepping resolution and output current

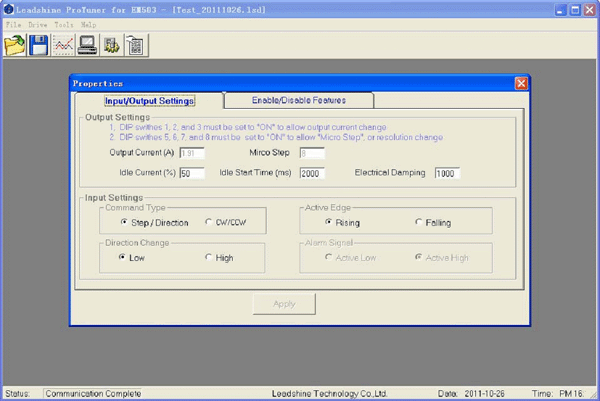

  • Free software for fine tuning, output current, resolutions...
  • Automatic stepper motor identification and self configuration



Leadshine's DM series digital stepper drives are DSP-based innovative products adopting the latest stepper control technology. Those stepper motor drives feature anti-resonance, low-speed ripple smoothing, extra-low noise, and low motor heating, therefore they can offer excellent performance for stepper motor controls.

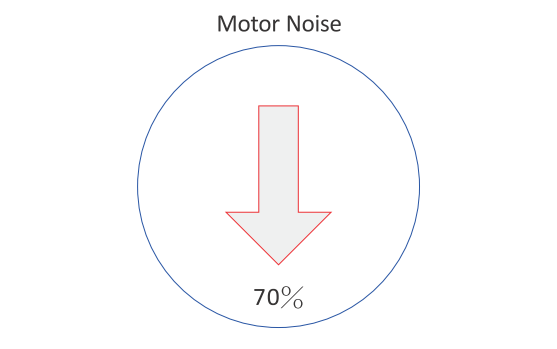

They can drive 2/3 stepper motors from NEMA 8 to 42 at very smooth movements with very low motor and drive heating. Compared with most analog stepper drives, noise can be reduced up to 70%.Taking step & direction (drive supports analog input for speed control also available)control commands, the DM series stepper motor drives are easy to set up. There is a wide choice for the DM stepper motor drives to suit input voltage from 18 VDC to direct 120/230 VAC, and output current of 0.3 to 8.2A.

Available Products in DM Series
Model Series
Control Type(s) Phase Supply Voltage

Output Current

(A)

Step Revolution Suitable Stepper Motors
DM556DMStep & Direction / CW & CCW218 - 50 VDC0.5 - 5.6200 - 51,200NEMA 17.23
DM870DMStep & Direction / CW & CCW218 - 80 VDC0.5 - 7.0200 - 51,200NEMA 23,34
DM1182DMStep & Direction / CW & CCW280 - 150 VAC0.5 - 8.2200 - 51,200NEMA 34,42
DM2282DMStep & Direction / CW & CCW290 - 230 VAC0.5 - 8.2200 - 51,200NEMA 34,42
3DM2283DMStep & Direction / CW & CCW390-230 VAC2.2 - 8.3200 - 51,200NEMA 34, 42
DM442-IO-24DMDIP Switches and 24VDC218 - 36 VDC0.5 - 4.2-NEMA 11, 14, 17, 23
DMA882S-IODMDIP Switches and 5 - 24VDC230-110VDC or 18-80VAC0.5 - 8.2-NEMA 24, 34
DM2282-IO-24DMDIP Switches and 24VDC290 - 230 VAC0.5 - 8.2-NEMA 34, 42
DM805-AIDMStep & Direction / 0-5VDC220 - 80 VDC0.5 - 7.0200 - 51,200NEMA 23,34
DM322EDMStep & Direction212 - 30 VDC0.3 - 2.2200 - 51,200NEMA 11, 14, 16, 17
DM542EDMStep & Direction220 - 50 VDC1.0 - 4.2400 - 25,600NEMA 16,17,23
DM556E DMStep & Direction220 - 50 VDC1.8 - 5.6400 - 25,600NEMA 17,23,24
DM860EDMStep & Direction / CW & CCW224 - 74 VDC2.4 - 7.2 A200 - 51,200NEMA 23, 24, 34
DMA860EDMStep & Direction / CW & CCW218 - 80 VAC / 36 - 110 VDC2.4 - 7.2400 - 51,200NEMA 23, 34, 42
